GN6 Series – WQHD Digital Video Recorders
TeleEye GN6 Series is a new generation of WQHD digital video recorders. WQHD is a video resolution standard equivalent to 2560 x 1440 pixels. Since WQHD video footage comes with 4 times the resolution of 720p HD, it contains much more useful information for post-incident investigation. As WQHD is sitting between 1080p and 4K, it is an excellent balance between video clarity and processing requirement in a practical video management system.
The GN6 Series DVRs comprise of two models, the GN6516 and GN6608, which are designed with two opposite approaches that have two distinguished benefits. Supporting the enhanced H.264 technology, video compression is 30% more efficient than standard H.264.
What is WQHD?
Enhanced H.264 - Greater detail with less data
Higher resolution videos certainly give benefits in investigations. Nevertheless they would lead to the requirement on a more sophisticated video compression engine in order to improve the manipulations such as video streaming and storage. TeleEye GN6 Series DVRs and MP400 Series WQHD IP cameras support enhanced H.264 in which the compression is 30% more efficient than ordinary H.264.
Two opposite approaches, Two distinguished benefits

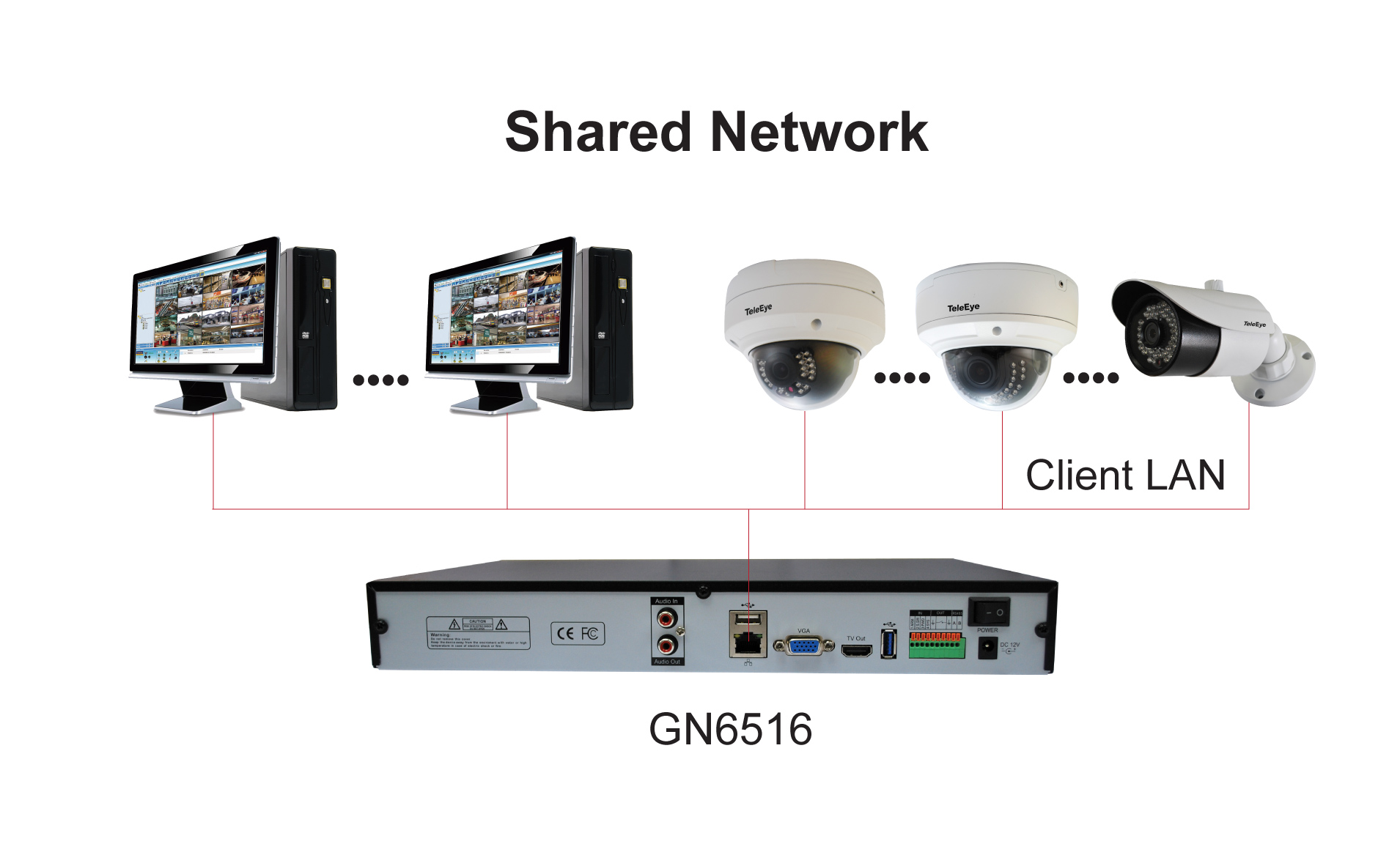

Shared Network – Simplest installation
GN6516 is designed for projects requiring IP camera data running on an existing LAN in the premises. By running video feeds through an existing network infrastructure, it greatly simplifies the installation work that would result in a lower deployment cost.
Not only for evidences ... they minimize loss & damage
GN6 Series DVRs are designed for fulfilling the complete security needs. GN6 Series DVRs can interface with different types of alarm sensors. When any incident is detected, the DVR would make a connection back to a 7/24 security centre. The operator can inspect the video and respond to the incident swiftly and precisely, such as expelling the intruder by delivering a verbal warning message. Hence the loss and damage due to the incident can be minimized.
Live or event-driven monitoring … Up to your choice
GN6 Series DVRs are fully compatible with all TeleEye video management platforms, including sureSIGHT and sureGUARD, for different application’s requirements. sureSIGHT is designed for monitoring of numerous live video feeds simultaneously, whilst sureGUARD is purposely built for visual alarm verification in professional security centres.
Models
|
Models |
Description |
|
GN6516 |
WQHD Digital Video Recorder Shared Network, Enhanced H.264, Max. Recording Rate 400fps |
| GN6916 | WQHD Digital Video Recorder, 1 Dedicated Video Port, Enhanced H.264, Max. Recording Rate 25/30fps per channel @ WQHD |
|
|
|
Configuration
