AF Series - AHD 1080p Cameras

Common Features

  • HD 1080p

  • 1/2.8” Sony CMOS sensor

  • Day / Night 0.0 Lux (IR On)

  • Coaxial / UTP cables up to 400m

  • WDR

  • Auto noise reduction

  • OSD menu, multi-language

  • IP66 weatherproof

Pan Tilt Zoom (PTZ) Cameras

AF5010

1080p Mini Speed Dome

  • f=5.5-55mm, 10x Optical Zoom

  • Pan 0° - 360° with continuous rotation

  • Control over Coaxial (CoC)

Datasheet

AF6120

1080p IR Speed Dome

  • f=4.7-94mm, 20x Optical Zoom

  • 9 IR LEDs / ~100m IR Range

  • Control over Coaxial (CoC)

Datasheet

AF6132

1080p IR Speed Dome

  • f=4.6-152mm, 33x Optical Zoom

  • 10 IR LEDs / ~120m IR Range

  • Control over Coaxial (CoC)

Datasheet

Static Cameras

AF284

IR Fixed Bullet

  • f=3.6mm fixed lens

  • 2 IR LEDs / ~20m IR Range

Datasheet

AF286

IR Vandal resistant Vari-focal Dome

  • f=2.8-12mm vari-focal lens

  • Auto IR-cut filter

  • 24 IR LEDs / ~20m IR range

  • Vandal Resistant

Datasheet

AF287

IR Vari-focal Bullet

  • f=2.8-12mm vari-focal lens

  • 2 IR LEDs / ~30m IR Range

Datasheet

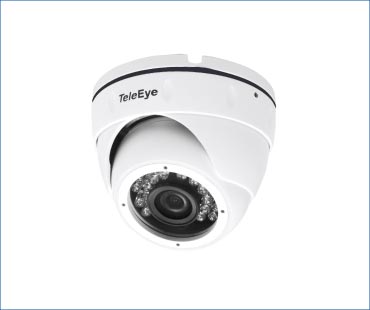

AF294

IR Fixed Dome

  • f=3.6mm fixed lens

  • Auto IR-cut Filter

  • 24 IR LEDs / ~15m IR Range

Datasheet

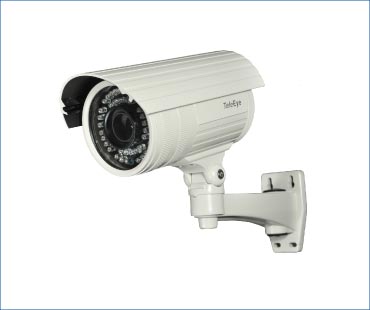

AF487M

IR Mid Range Vari-focal Bullet

  • f=6-22mm Vari-focal lens

  • 48 IR LEDs / ~50m IR Range

Datasheet

AF42M

IR Long Range Vari-focal Camera

  • f=6-22mm Vari-focal lens

  • 48 IR LEDs / ~80m IR Range

  • 2 groups of hi-power LEDs

Datasheet
